FPL 208 S/S N 6 AGRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 40 BORE - SELECT RANGE
Metric SF - UCF type Green Thermoplastic Square Flange Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£112.98 (£135.58 inc VAT)
- 5 - 9£107.35 (£128.82 inc VAT)
- 10 +£101.69 (£122.03 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FPL 208 S/S N 6 AGRN, Green Thermoplastic Square Flange Housing Unit with a 40 bore - Select Range | |
| Reference | FPL 208 S/S N 6 AGRN |
| Brand | Select |
| Inside Diameter | 40mm |
| Bolt | M12 |
| Max Torque | 40Nm |
| Weight (KG) | 0.97 |

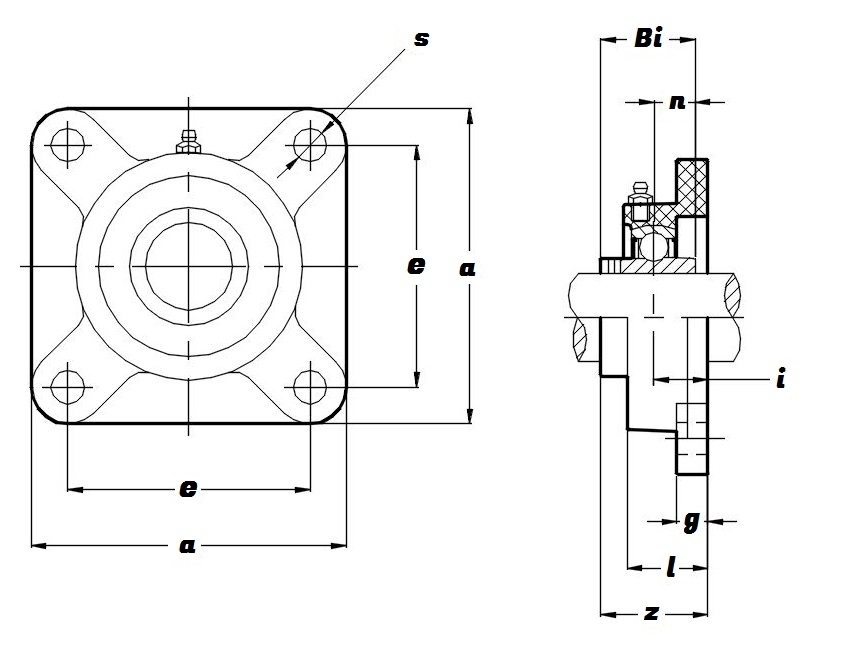

Schematic for FPL 208 S/S N 6 AGRN, Green Thermoplastic Square Flange Housing Unit with a 40 bore - Select Range | |
| a | 130mm |
| Bi | 49.2mm |
| e | 102mm |
| g | 17mm |
| i | 23mm |
| KG | 0.97 |
| l | 37.5mm |
| n | 19mm |
| s | 14mm |
| z | 53.2mm |
