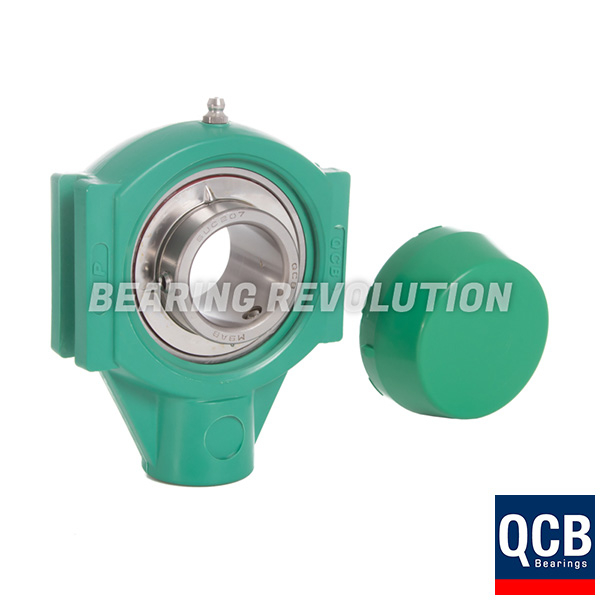

TPL 207 S/S N 6 GRN, GREEN THERMOPLASTIC TAKE UP HOUSING UNIT WITH A 35 BORE - SELECT RANGE

Name: TPL 207 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 35 bore - Select Range
Brand: Select
Price: 139.61 GBP
Availability: InStock

BR Stock No. S-TPL 207 S/S N 6 GRN | Brand: Select | Mfr. Part No. TPL 207 S/S N 6 GRN

Metric Green Thermoplastic Take Up Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£116.34 (£139.61 inc VAT)
5 - 9£110.53 (£132.64 inc VAT)
10 +£104.70 (£125.64 inc VAT)
Bulk Order PricesENQUIRE

TPL 207 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 35 bore - Select Range Schematic

Specifications for TPL 207 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 35 bore - Select Range
Reference	TPL 207 S/S N 6 GRN
Brand	Select
Inside Diameter	35mm
Weight (KG)	0.77

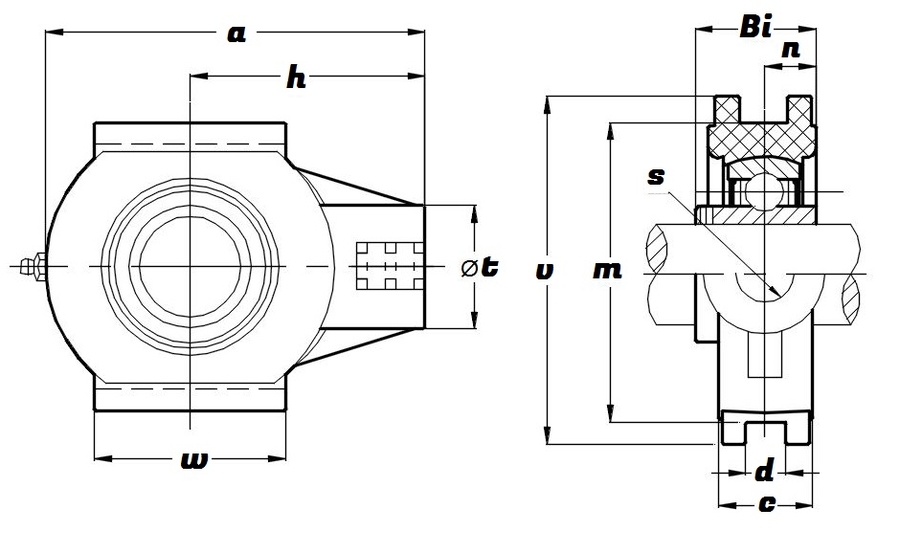

Schematic for TPL 207 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 35 bore - Select Range
a	125mm
Bi	42.9mm
c	34.5mm
D	12mm
h	76mm
KG	0.77
m	89mm
n	17.5mm
s	M16
t	40mm
v	102mm
w	63mm
