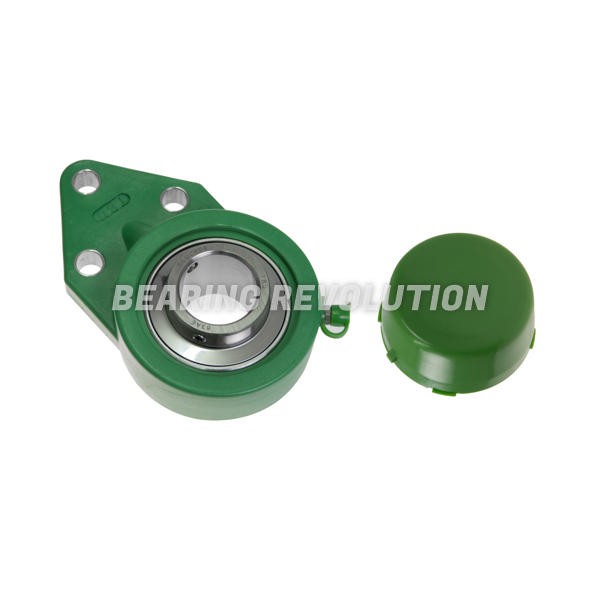

FBL 204 S/S N 6 GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 20MM BORE - BUDGET RANGE
Metric UCFB type Green Thermoplastic Flange Bracket Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£45.40 (£54.48 inc VAT)
- 5 - 9£43.12 (£51.74 inc VAT)
- 10 +£40.86 (£49.03 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FBL 204 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 20mm bore - Budget Range | |
| Reference | FBL 204 S/S N 6 GRN |
| Brand | Budget |
| Inside Diameter | 20mm |
| Bolt | M10 |
| Max Torque | 18Nm |
| Weight (KG) | 0.23 |

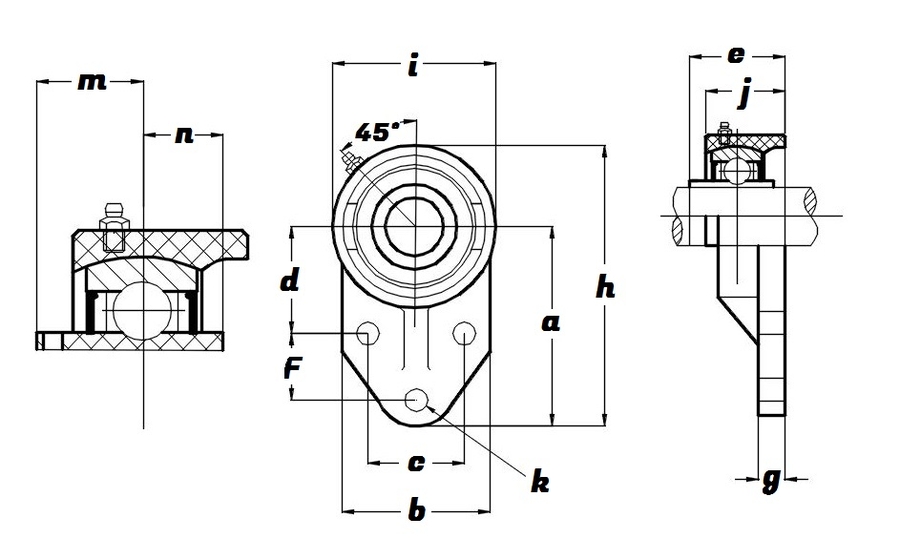

Schematic for FBL 204 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 20mm bore - Budget Range | |
| a | 76.2mm |
| b | 62mm |
| c | 38.1mm |
| d | 42.9mm |
| e | 33.7mm |
| f | 22.2mm |
| g | 11.4mm |
| h | 108mm |
| i | 63.5mm |
| j | 26.5mm |
| k | 10.7mm |
| KG | 0.23 |
| m | 18.3mm |
| n | 12.7mm |
