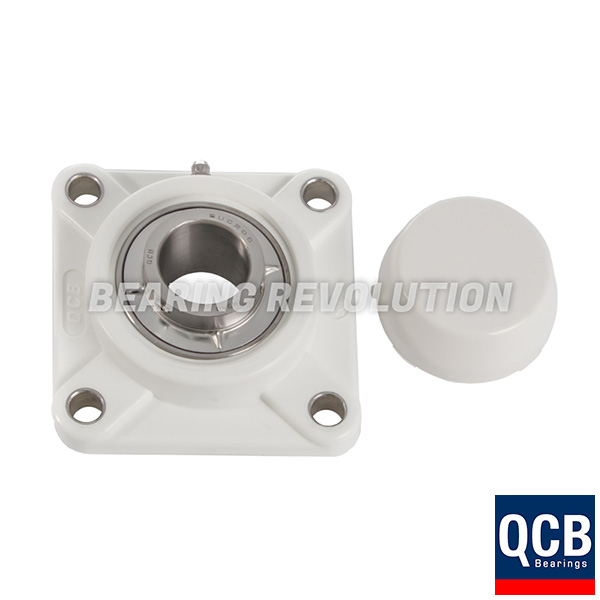

FPL 204 S/S N6 WHT, WHITE THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 20 BORE - SELECT RANGE

Name: FPL 204 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range
Brand: Select
Price: 63.48 GBP
Availability: InStock

BR Stock No. S-FPL 204 S/S N6 WHT | Brand: Select | Mfr. Part No. FPL 204 S/S N6 WHT

Metric SF - UCF type White Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£52.90 (£63.48 inc VAT)
5 - 9£50.24 (£60.29 inc VAT)
10 +£47.62 (£57.14 inc VAT)
Bulk Order PricesENQUIRE

FPL 204 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range Schematic

Specifications for FPL 204 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range
Reference	FPL 204 S/S N6 WHT
Brand	Select
Inside Diameter	20mm
Bolt	M10
Max Torque	18Nm
Weight (KG)	0.25

Schematic for FPL 204 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range
a	86mm
Bi	31mm
e	63.5mm
g	13.4mm
i	18mm
KG	0.25
l	27.8mm
n	12.7mm
s	11mm
z	36.3mm
