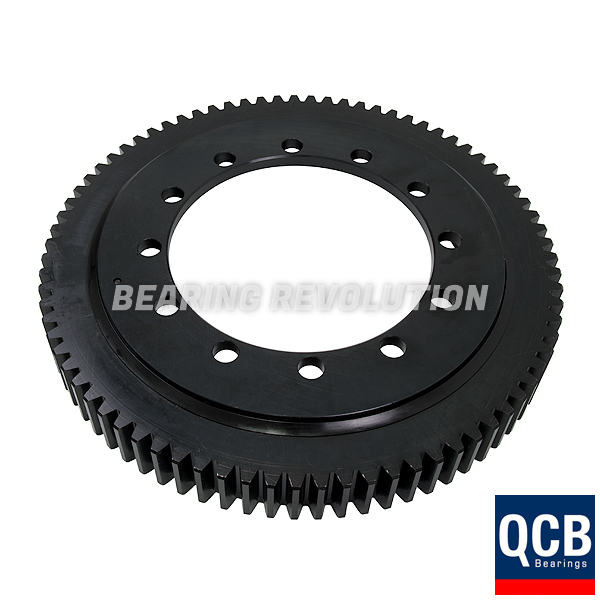

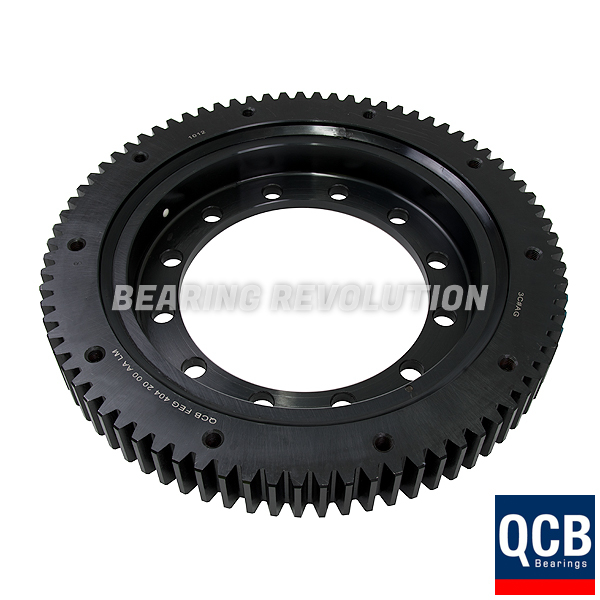

FEG 404 20 00 AA LM, EXTERNALLY GEARED SLEWING RING - SELECT RANGE
FEG 20 Metric - Flanged Light Series of Externally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as FEG4042000AALM
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£740.34 (£888.41 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FEG 404 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| Reference | FEG 404 20 00 AA LM |
| Brand | Select |

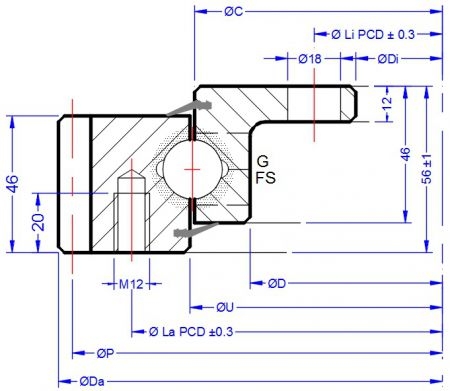

Schematic for FEG 404 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| C | 312.5mm |
| D | 275mm |
| Da | 404mm |
| Di | 204mm |
| La | 355mm |
| Li | 232mm |
| m | 5 |
| Na | 10 |
| Ni | 12 |
| P | 395mm |
| U | 315.5mm |
| z | 79 |
