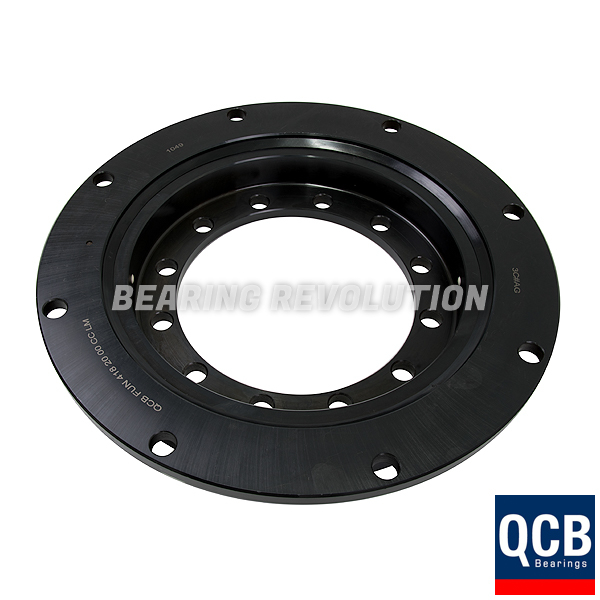

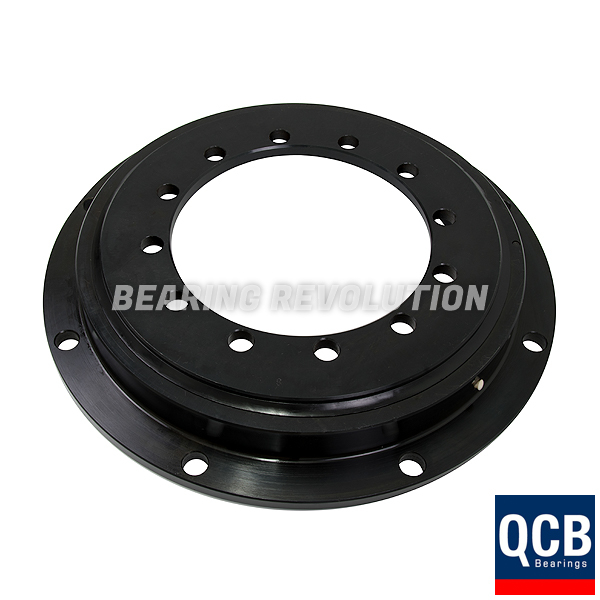

FUN 950 20 00 CC LM, UNGEARED SLEWING RING - SELECT RANGE
FUN 20 Metric - Flanged Light Series of Ungeared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as SD 950 20 00 C, VLU 20 0844 N, 23.0841.01.ZZ.00, 230.20.0800.013, 21/950.0, FUN9502000CCLM, SD.950.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£1,628.10 (£1,953.72 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FUN 950 20 00 CC LM, Ungeared Slewing Ring - Select Range | |
| Reference | FUN 950 20 00 CC LM |
| Brand | Select |
Schematic for FUN 950 20 00 CC LM, Ungeared Slewing Ring - Select Range | |
| B | 883mm |
| C | 842.5mm |
| D | 805mm |
| Da | 948mm |
| Di | 734mm |
| La | 920mm |
| Li | 762mm |
| Na | 14 |
| Ni | 18 |
| U | 845.5mm |
