FEG 750 20 00 AA LM, EXTERNALLY GEARED SLEWING RING - SELECT RANGE
FEG 20 Metric - Flanged Light Series of Externally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as E 750 20 00 C, VLA 20 0644 N, 21.0641.01.ZZ.00, 231.20.0600.013, 21/750 1, FEG7502000AALM, E.750.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£1,252.26 (£1,502.71 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FEG 750 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| Reference | FEG 750 20 00 AA LM |
| Brand | Select |

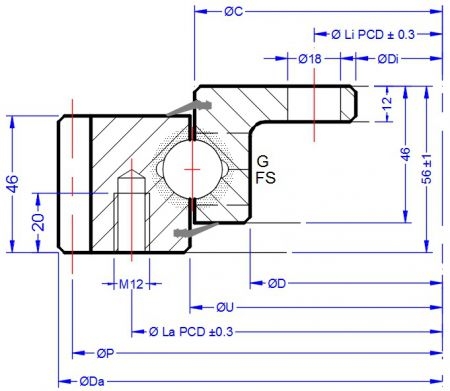

Schematic for FEG 750 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| C | 642.5mm |
| D | 605mm |
| Da | 742mm |
| Di | 534mm |
| La | 685mm |
| Li | 562mm |
| m | 6 |
| Na | 16 |
| Ni | 16 |
| P | 732mm |
| U | 645.5mm |
| z | 122 |
