FEG 650 20 00 AA LM, Externally Geared Slewing Ring - Select Range

FEG 650 20 00 AA LM, Externally Geared Slewing Ring - Select Range 2

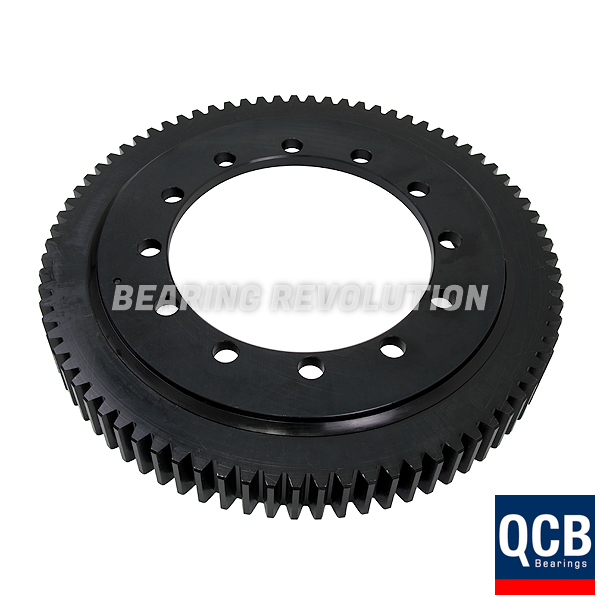

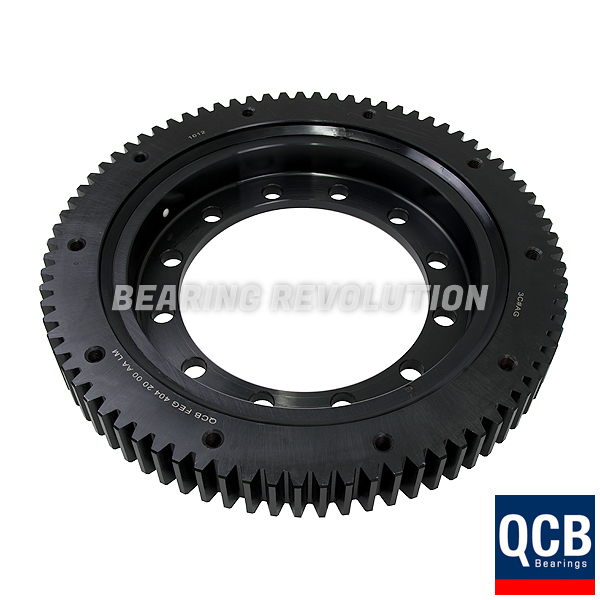

Please note photos are for illustration purposes only

FEG 650 20 00 AA LM, EXTERNALLY GEARED SLEWING RING - SELECT RANGE

Name: FEG 650 20 00 AA LM, Externally Geared Slewing Ring - Select Range
Brand: Select
Price: 1,253.88 GBP
Availability: InStock

BR Stock No. S-FEG 650 20 00 AA LM | Brand: Select | Mfr. Part No. FEG 650 20 00 AA LM

FEG 20 Metric - Flanged Light Series of Externally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.

Also known as E 650 20 00 C, VLA 20 0544 N, 21.0541.01.ZZ.00, 231.20.0500.013, 21/650 1, FEG6502000AALM, E.650.20.00.C

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£1,044.90 (£1,253.88 inc VAT)
Bulk Order PricesENQUIRE

FEG 650 20 00 AA LM, Externally Geared Slewing Ring - Select Range Schematic

Specifications for FEG 650 20 00 AA LM, Externally Geared Slewing Ring - Select Range
Reference	FEG 650 20 00 AA LM
Brand	Select

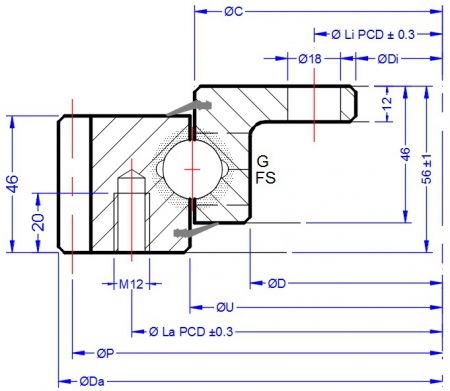

Schematic for FEG 650 20 00 AA LM, Externally Geared Slewing Ring - Select Range
C	542.5mm
D	505mm
Da	640mm
Di	434mm
La	585mm
Li	462mm
m	6
Na	14
Ni	14
P	630mm
U	545.5mm
z	105
