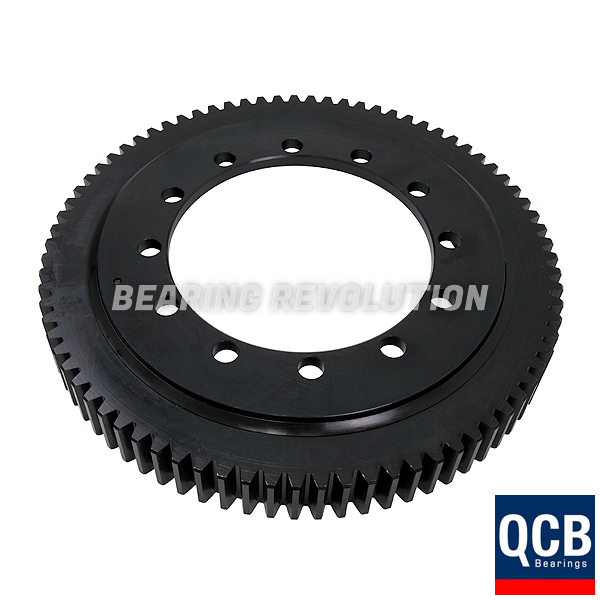

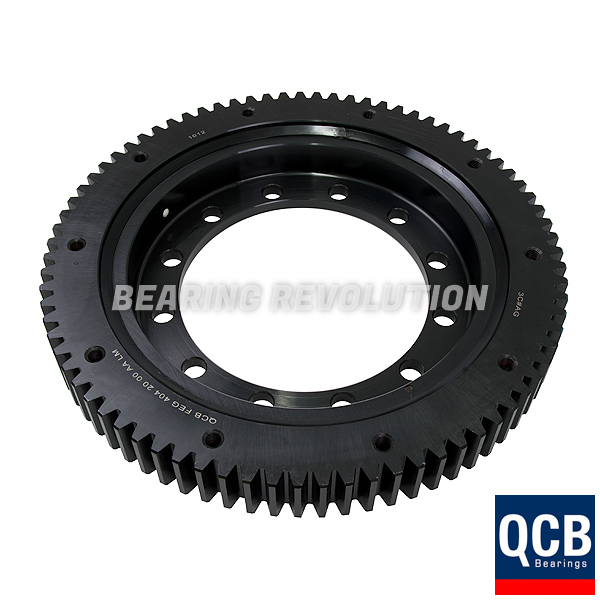

Please note photos are for illustration purposes only
Technical Downloads
Data SheetHow To Measure A Bearing FEG 1050 20 00 AA LM, EXTERNALLY GEARED SLEWING RING - SELECT RANGE
FEG 20 Metric - Flanged Light Series of Externally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as E 1050 20 00 C, VLA 20 0944 N, 21.0941.01.ZZ.00, 231.20.0900.013, 21/1050 1, FEG10502000AALM, E.1050.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£1,835.46 (£2,202.55 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FEG 1050 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| Reference | FEG 1050 20 00 AA LM |
| Brand | Select |

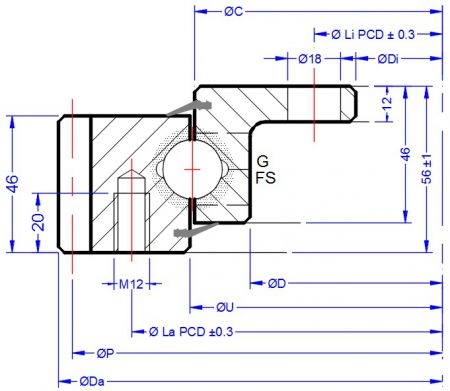

Schematic for FEG 1050 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| C | 942.5mm |
| D | 905mm |
| Da | 1046mm |
| Di | 834mm |
| La | 985mm |
| Li | 862mm |
| m | 8 |
| Na | 20 |
| Ni | 20 |
| P | 1032mm |
| U | 945.5mm |
| z | 129 |
