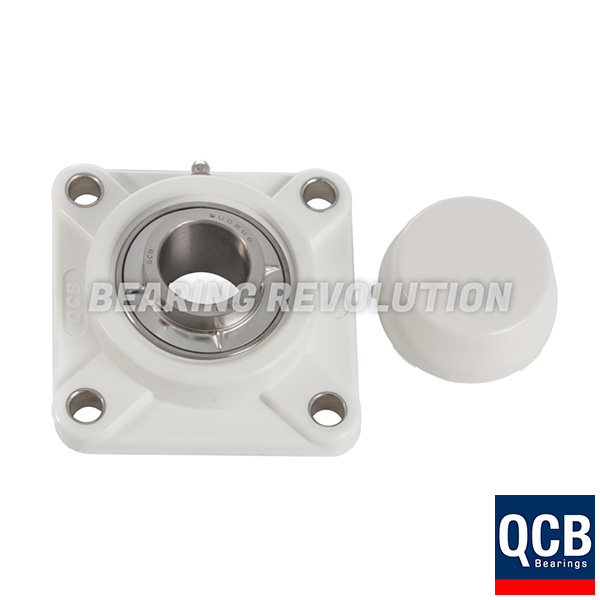

FPL 205 S/S N6 WHT, WHITE THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 25 BORE - SELECT RANGE

Name: FPL 205 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 25 bore - Select Range
Brand: Select
Price: 67.28 GBP
Availability: InStock

BR Stock No. S-FPL 205 S/S N6 WHT | Brand: Select | Mfr. Part No. FPL 205 S/S N6 WHT

Metric SF - UCF type White Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£56.07 (£67.28 inc VAT)
5 - 9£53.29 (£63.95 inc VAT)
10 +£50.45 (£60.54 inc VAT)
Bulk Order PricesENQUIRE

FPL 205 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 25 bore - Select Range Schematic

Specifications for FPL 205 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 25 bore - Select Range
Reference	FPL 205 S/S N6 WHT
Brand	Select
Inside Diameter	25mm
Bolt	M10
Max Torque	25Nm
Weight (KG)	0.32

Schematic for FPL 205 S/S N6 WHT, White Thermoplastic Square Flange Housing Unit with a 25 bore - Select Range
a	95mm
Bi	34mm
e	70mm
g	14mm
i	17mm
KG	0.32
l	28mm
n	14.3mm
s	11mm
z	36.7mm
