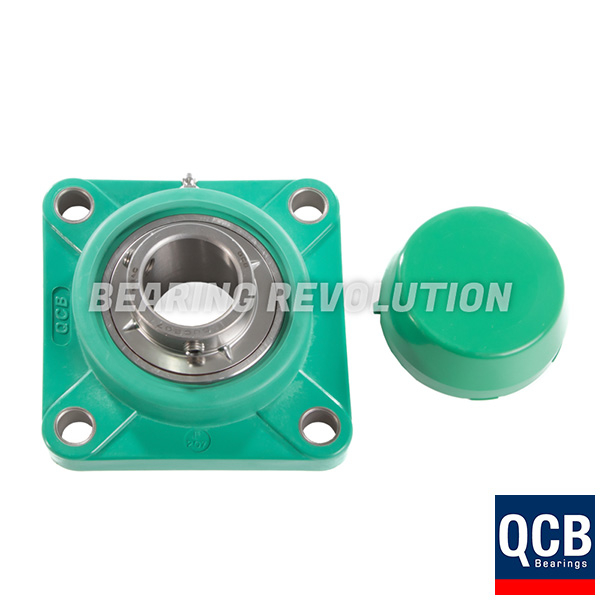

FPL 210 S/S N 6 GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 50 BORE - SELECT RANGE
Metric SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£181.51 (£217.81 inc VAT)
- 5 - 9£172.43 (£206.92 inc VAT)
- 10 +£163.36 (£196.03 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FPL 210 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 50 bore - Select Range | |
| Reference | FPL 210 S/S N 6 GRN |
| Brand | Select |
| Inside Diameter | 50mm |
| Bolt | M16 |
| Max Torque | 50Nm |
| Weight (KG) | 1.42 |

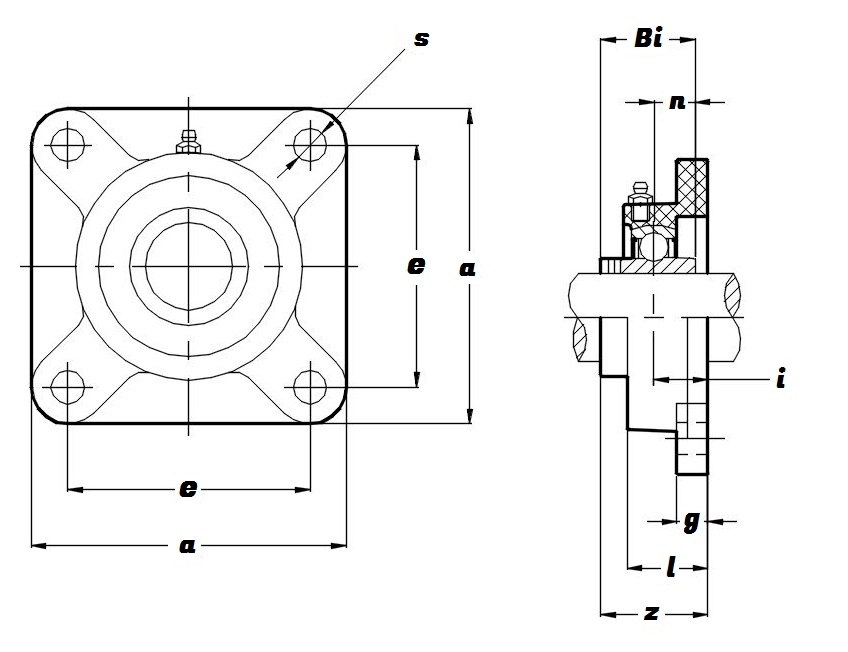

Schematic for FPL 210 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 50 bore - Select Range | |
| a | 143mm |
| Bi | 51.6mm |
| e | 111mm |
| g | 21mm |
| i | 25mm |
| KG | 1.42 |
| l | 43mm |
| n | 19mm |
| s | 17mm |
| z | 57.6mm |
