Please note photos are for illustration purposes only

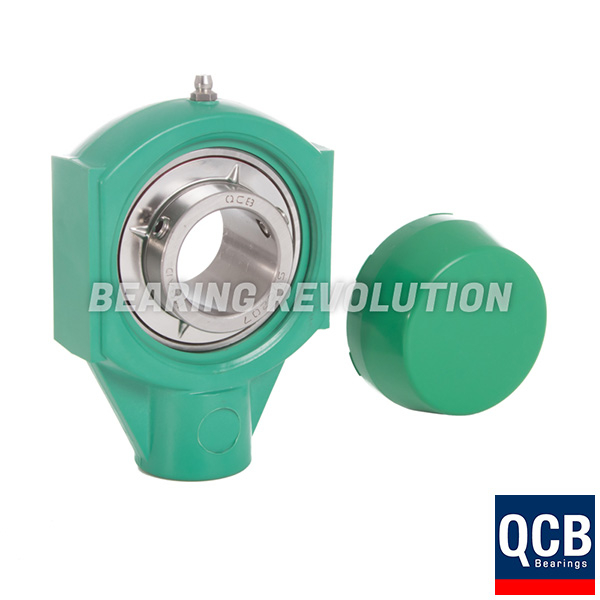

HPL 206 S/S N 6 GRN, GREEN THERMOPLASTIC HANGER HOUSING UNIT WITH A 30 BORE - SELECT RANGE

Name: HPL 206 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 30 bore - Select Range
Brand: Select
Price: 146.41 GBP
Availability: InStock

BR Stock No. S-HPL 206 S/S N 6 GRN | Brand: Select | Mfr. Part No. HPL 206 S/S N 6 GRN

Metric Green Thermoplastic Hanger Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£122.01 (£146.41 inc VAT)
5 - 9£115.90 (£139.08 inc VAT)
10 +£109.80 (£131.76 inc VAT)
Bulk Order PricesENQUIRE

HPL 206 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 30 bore - Select Range Schematic

Specifications for HPL 206 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 30 bore - Select Range
Reference	HPL 206 S/S N 6 GRN
Brand	Select
Inside Diameter	30mm
Weight (KG)	0.5

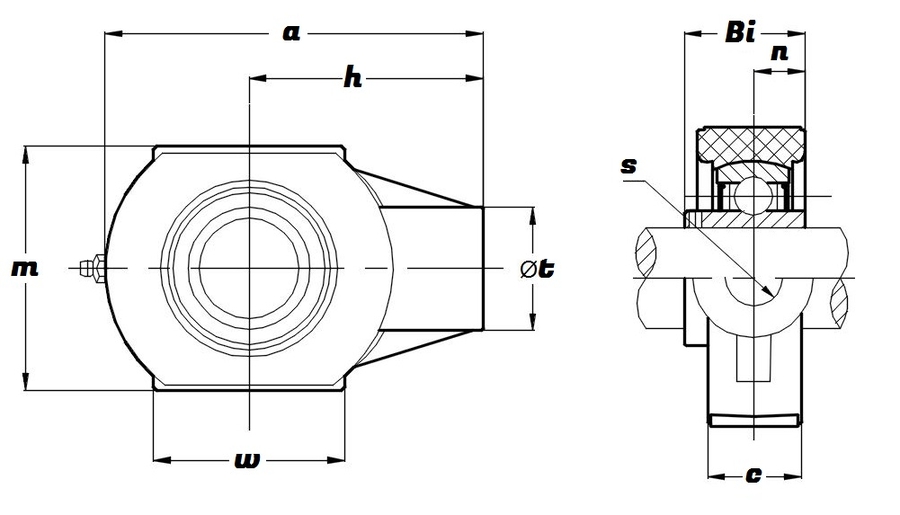

Schematic for HPL 206 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 30 bore - Select Range
a	125mm
Bi	38.1mm
c	34.5mm
h	76mm
KG	0.5
m	90mm
n	15.9mm
t	40mm
w	63mm
