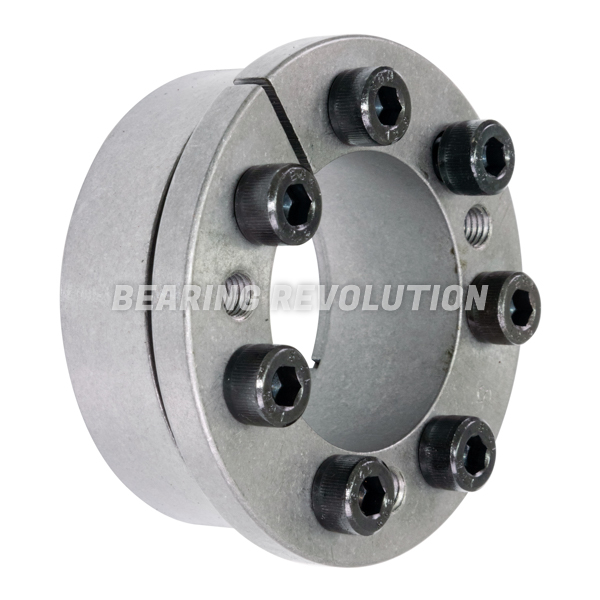

KLAB 045
LOCKING DEVICE TO SUIT A 45MM SHAFT
Self-centering locking device for rapid mainternance and assembly, medium to high torque, self locking.
- UnitsPer unit
- 1+£29.40 (£35.28 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLAB 045 | |
| Reference | KLAB 045 |
| Brand | BR |
| Inside Diameter | 45mm |
| Bolt | M8x25 |
| Number of Screws | 7 |
| Weight (KG) | 0.75 |

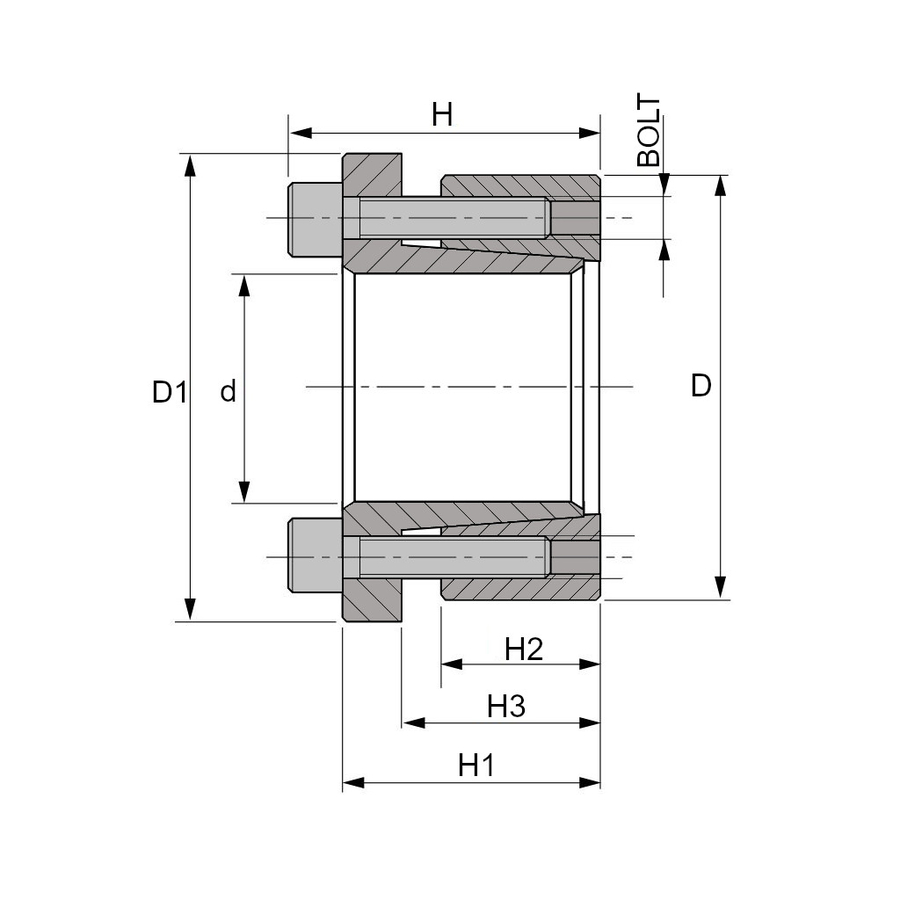

Schematic for KLAB 045 | |
| d | 45mm |
| D | 75mm |
| d1 | 84mm |
| H | 41mm |
| H1 | 33mm |
| H2 | 20mm |
| H3 | 25mm |
