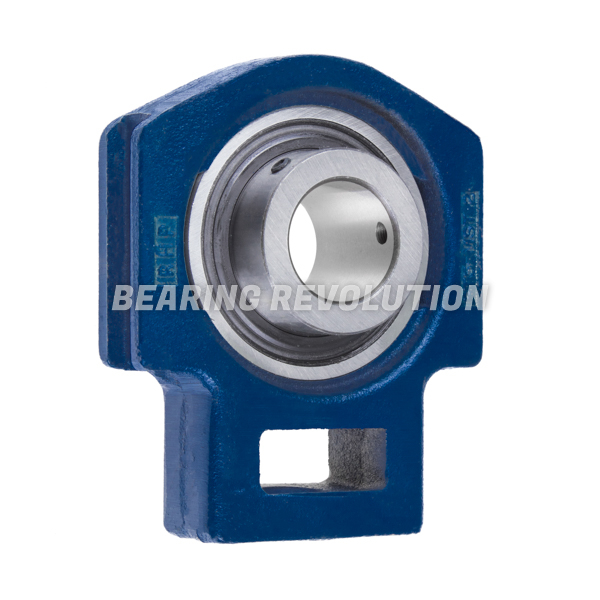

MST 45, 'PREMIUM' TAKE UP UNIT WITH A 45MM BORE.

Name: MST 45, 'Premium' Take Up Unit with a 45mm bore.
Brand: Premium
Price: 242.90 GBP
Availability: InStock

BR Stock No. P-MST 45 | Brand: Premium | Mfr. Part No. MST 45

Heavy Duty Cast Iron Take Up Unit complete with full width bearing insert from our Premium Range.

Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).

UnitsPer unit
1 - 4£202.42 (£242.90 inc VAT)
5 +£192.29 (£230.75 inc VAT)
Bulk Order PricesENQUIRE

MST 45, 'Premium' Take Up Unit with a 45mm bore. Schematic

Specifications for MST 45, 'Premium' Take Up Unit with a 45mm bore.
Reference	MST 45
Brand	Premium
Inside Diameter	45mm
Weight (KG)	2.8

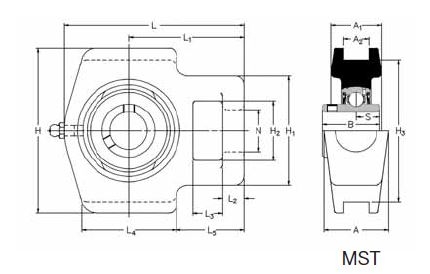

Schematic for MST 45, 'Premium' Take Up Unit with a 45mm bore.
A	49.5mm
A1	37mm
A2	17.5mm
B	51.6mm
H	118mm
H1	82.5mm
H2	49.5mm
H3	101mm
KG	2.8
L	151mm
L1	90.5mm
L2	15.5mm
L3	20.5mm
L4	81.5mm
L5	50.5mm
N	29mm
s	19.04mm
