NFL 205 S/S N6 WHT, WHITE THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 25 BORE - SELECT RANGE
Metric SFT - UCFL type White Thermoplastic Oval Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£54.85 (£65.82 inc VAT)
- 5 - 9£52.10 (£62.52 inc VAT)
- 10 +£49.35 (£59.22 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NFL 205 S/S N6 WHT, White Thermoplastic Oval Flange Housing Unit with a 25 bore - Select Range | |
| Reference | NFL 205 S/S N6 WHT |
| Brand | Select |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Max Torque | 25Nm |
| Weight (KG) | 0.28 |

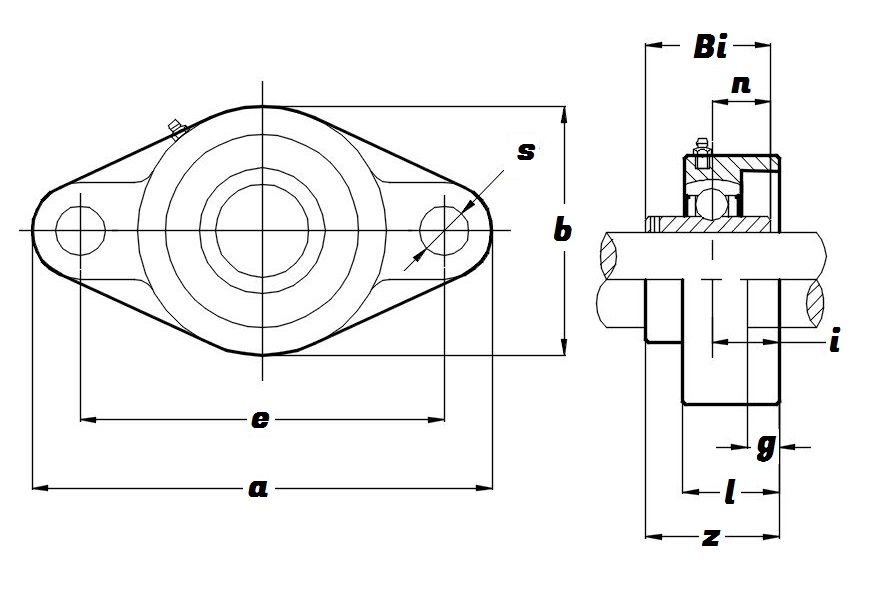

Schematic for NFL 205 S/S N6 WHT, White Thermoplastic Oval Flange Housing Unit with a 25 bore - Select Range | |
| a | 131mm |
| b | 69.5mm |
| Bi | 34mm |
| e | 99mm |
| g | 13.5mm |
| i | 17mm |
| KG | 0.28 |
| l | 29.1mm |
| n | 14.3mm |
| s | 11mm |
| z | 36.7mm |
