NFL 208 S/S N 6A GRN, GREEN THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 40 BORE - SELECT RANGE
Metric SFT - UCFL type Green Thermoplastic Oval Flange Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£110.04 (£132.05 inc VAT)
- 5 - 9£104.55 (£125.46 inc VAT)
- 10 +£99.05 (£118.86 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NFL 208 S/S N 6A GRN, Green Thermoplastic Oval Flange Housing Unit with a 40 bore - Select Range | |
| Reference | NFL 208 S/S N 6A GRN |
| Brand | Select |
| Inside Diameter | 40mm |
| Bolt | M12 |
| Max Torque | 40Nm |
| Weight (KG) | 0.88 |

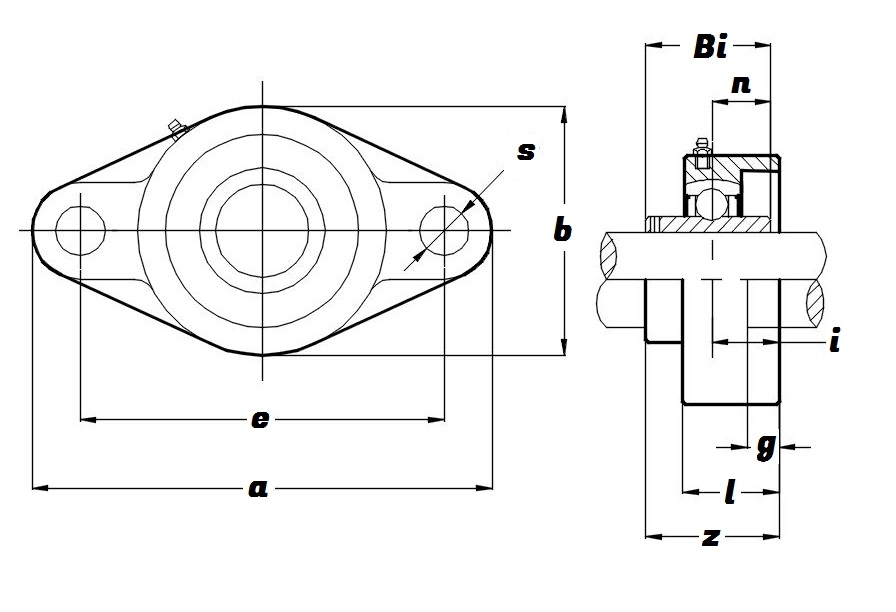

Schematic for NFL 208 S/S N 6A GRN, Green Thermoplastic Oval Flange Housing Unit with a 40 bore - Select Range | |
| a | 176mm |
| b | 100mm |
| Bi | 49.2mm |
| e | 144mm |
| g | 20mm |
| i | 21.5mm |
| KG | 0.88 |
| l | 37.5mm |
| n | 19mm |
| s | 14mm |
| z | 51.7mm |
