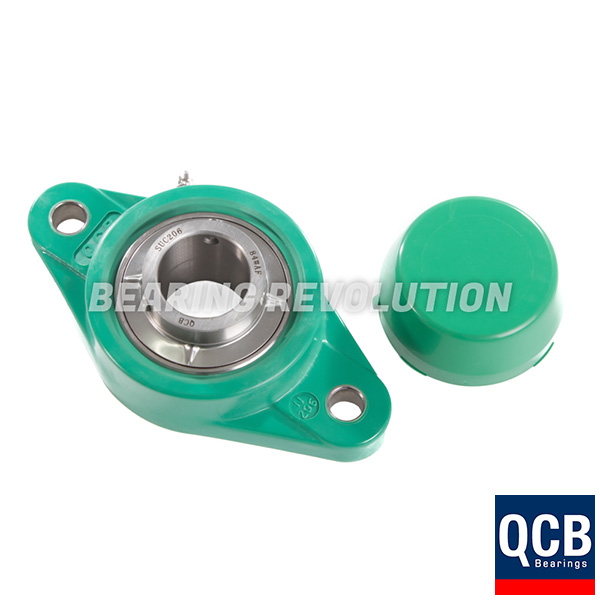

NFL 209 S/S N 6 GRN, GREEN THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 45 BORE - SELECT RANGE

Name: NFL 209 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 45 bore - Select Range
Brand: Select
Price: 186.61 GBP
Availability: InStock

BR Stock No. S-NFL 209 S/S N 6 GRN | Brand: Select | Mfr. Part No. NFL 209 S/S N 6 GRN

Metric SFT - UCFL type Green Thermoplastic Oval Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£155.51 (£186.61 inc VAT)
5 - 9£147.75 (£177.30 inc VAT)
10 +£139.97 (£167.96 inc VAT)
Bulk Order PricesENQUIRE

NFL 209 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 45 bore - Select Range Schematic

Specifications for NFL 209 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 45 bore - Select Range
Reference	NFL 209 S/S N 6 GRN
Brand	Select
Inside Diameter	45mm
Bolt	M16
Max Torque	45Nm
Weight (KG)	1.05

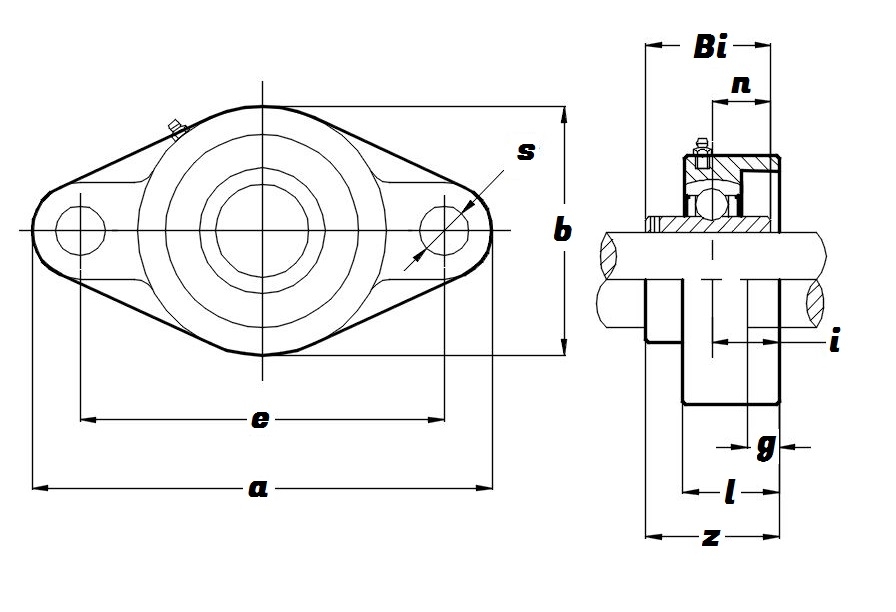

Schematic for NFL 209 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 45 bore - Select Range
a	188.5mm
b	108mm
Bi	49.2mm
e	148.5mm
g	21mm
i	24mm
KG	1.05
l	41mm
n	19mm
s	17mm
z	54.2mm
