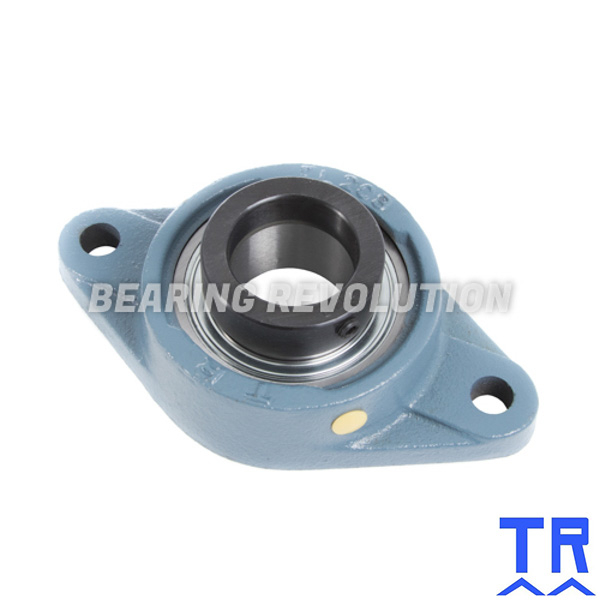

SFT 2 EC ( SAFL 211 32 ) - OVAL FLANGE UNIT WITH A 2 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£91.65 (£109.98 inc VAT)
- 5 - 9£87.06 (£104.47 inc VAT)
- 10 +£82.48 (£98.98 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 2 EC ( SAFL 211 32 ) - Oval Flange Unit with a 2 inch bore - TR Brand | |
| Reference | SFT 2 EC |
| Brand | TR |
| Inside Diameter | 2" |
| Bolt | M16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 2.89 |

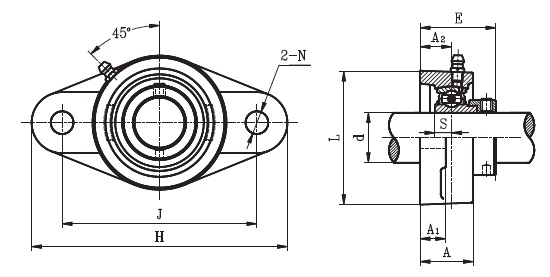

Schematic for SFT 2 EC ( SAFL 211 32 ) - Oval Flange Unit with a 2 inch bore - TR Brand | |
| A | 43mm |
| A1 | 18mm |
| A2 | 25mm |
| E | 61.4mm |
| H | 224mm |
| J | 184mm |
| KG | 2.89 |
| L | 130mm |
| N | 18mm |
| S | 12mm |
