T 1025 1 ( UC 205 16 R3 ) - BEARING INSERT WITH A 1 INCH BORE - TR BRAND
Bearing Insert a triple lip seal fitted on both sides. ID 1", OD 52mm, width 17mm. This triple seal consists of a metal cap and synthetic rubber seal which are baked together to form a single seal. The Lip layers are of a triple construction so outside matters such as dust and water are shut out. These bearings can also be supplied complete with Housings in our Bearing Units section or can be available on request.
- UnitsPer unit
- 1 - 4£12.34 (£14.81 inc VAT)
- 5 - 9£11.73 (£14.08 inc VAT)
- 10 +£11.11 (£13.33 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for T 1025 1 ( UC 205 16 R3 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| Reference | T 1025 1 |
| Brand | TR |
| Inside Diameter | 1" |
| Outside Diameter | 52mm |
| Width | 17mm |
| Dyn | 14000 |
| Stat | 7880 |
| Weight (KG) | 0.19 |

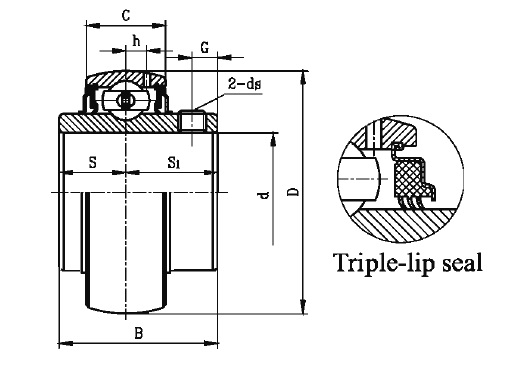

Schematic for T 1025 1 ( UC 205 16 R3 ) - Bearing Insert with a 1 inch bore - TR Brand | |
| B | 34mm |
| C | 17mm |
| D | 52mm |
| ds | M6x1 |
| G | 5.5mm |
| h | 4.3mm |
| KG | 0.19 |
| S | 14.3mm |
| S1 | 19.7mm |
