Please note photos are for illustration purposes only

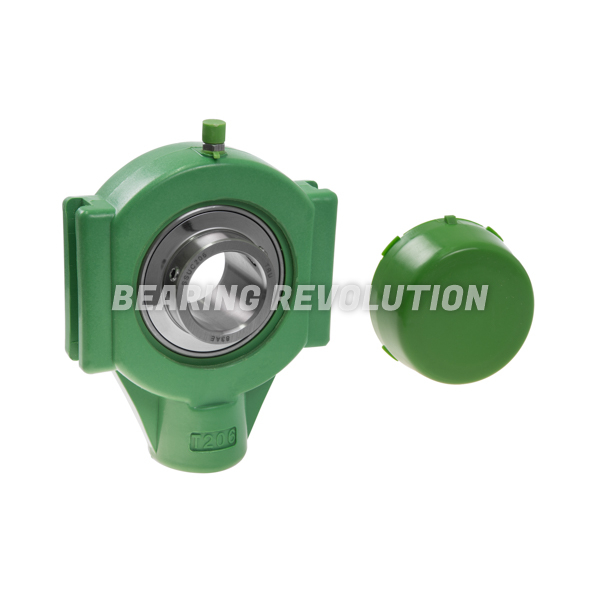

TPL 206 S/S N 6 GRN, GREEN THERMOPLASTIC TAKE UP HOUSING UNIT WITH A 30MM BORE - BUDGET RANGE

Name: TPL 206 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 30mm bore - Budget Range
Brand: Budget
Price: 76.52 GBP
Availability: InStock

BR Stock No. B-TPL 206 S/S N 6 GRN | Brand: Budget | Mfr. Part No. TPL 206 S/S N 6 GRN

Metric Green Thermoplastic Take Up Housing Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.

Our budget range is manufactured to International standards and represents great value for money.

UnitsPer unit
1 - 4£63.77 (£76.52 inc VAT)
5 - 9£60.59 (£72.71 inc VAT)
10 +£57.40 (£68.88 inc VAT)
Bulk Order PricesENQUIRE

TPL 206 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 30mm bore - Budget Range Schematic

Specifications for TPL 206 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 30mm bore - Budget Range
Reference	TPL 206 S/S N 6 GRN
Brand	Budget
Inside Diameter	30mm
Weight (KG)	0.51

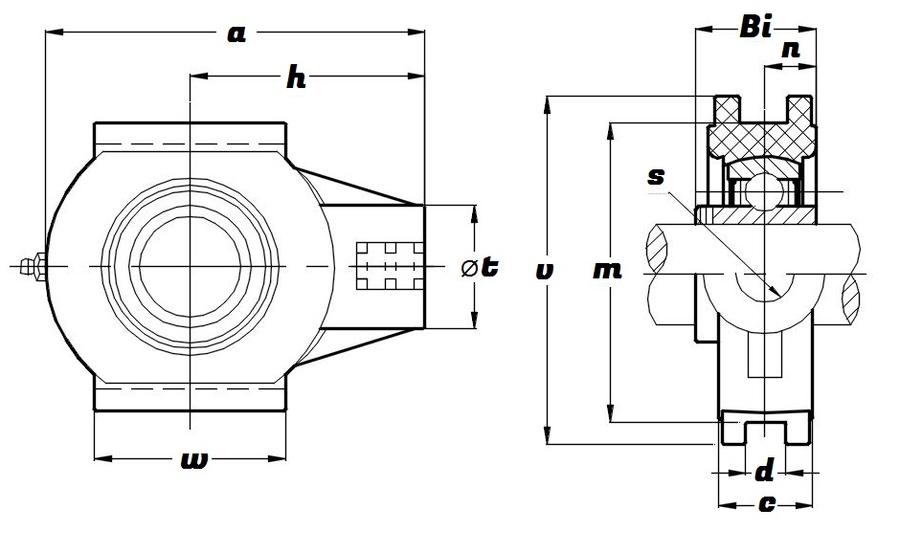

Schematic for TPL 206 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 30mm bore - Budget Range
a	125mm
Bi	38.1mm
c	34.5mm
D	12mm
h	76mm
KG	0.51
m	89mm
n	15.9mm
t	40mm
v	102mm
w	63mm
