UC 309

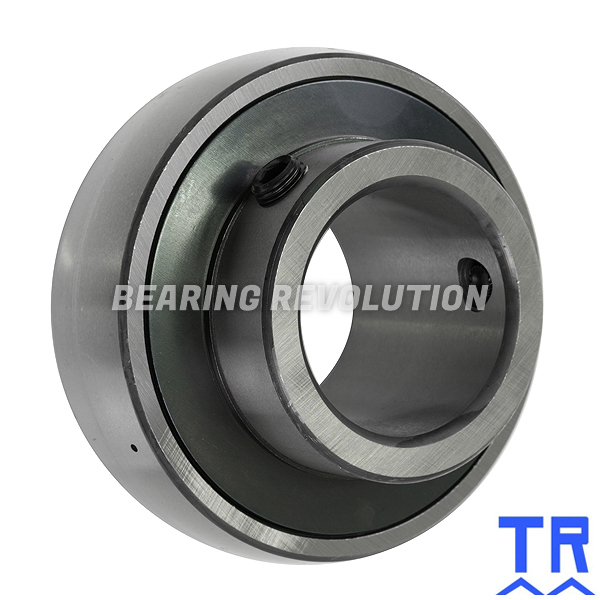

BEARING INSERT WITH A 45MM BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 45mm, OD 100mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as UC309
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£61.22 (£73.46 inc VAT)
- 5 - 9£58.15 (£69.78 inc VAT)
- 10 +£55.09 (£66.11 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 309 | |
| Reference | UC 309 |
| Brand | Budget |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Dyn | 53000 |
| Stat | 31800 |
| Weight (KG) | 1.24 |

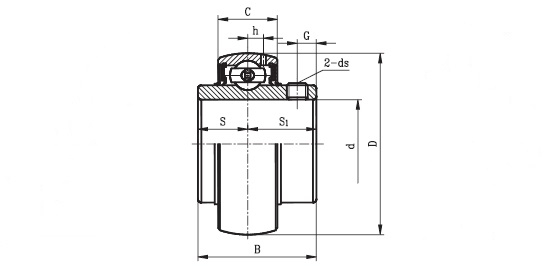

Schematic for UC 309 | |
| B | 57mm |
| C | 30mm |
| D | 100mm |
| ds | M10x1.25 |
| G | 10mm |
| h | 9mm |
| KG | 1.24 |
| S | 22mm |
| S1 | 35mm |
