UCT 212
TAKE UP UNIT WITH A 60MM BORE - TR BRAND

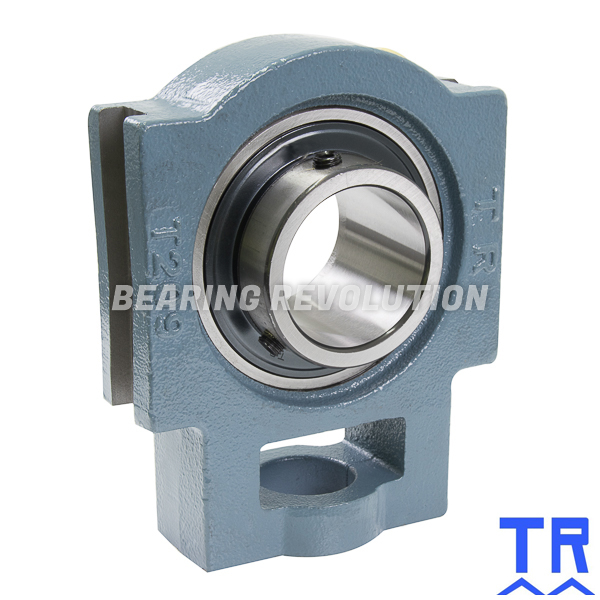

Cast Iron Take Up Unit complete with full width bearing insert from our TR Range.
Also known as UCT212
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£134.51 (£161.41 inc VAT)
- 5 - 9£127.77 (£153.32 inc VAT)
- 10 +£121.05 (£145.26 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCT 212 | |
| Reference | UCT 212 |
| Brand | Budget |
| Inside Diameter | 60mm |
| Weight (KG) | 4.61 |

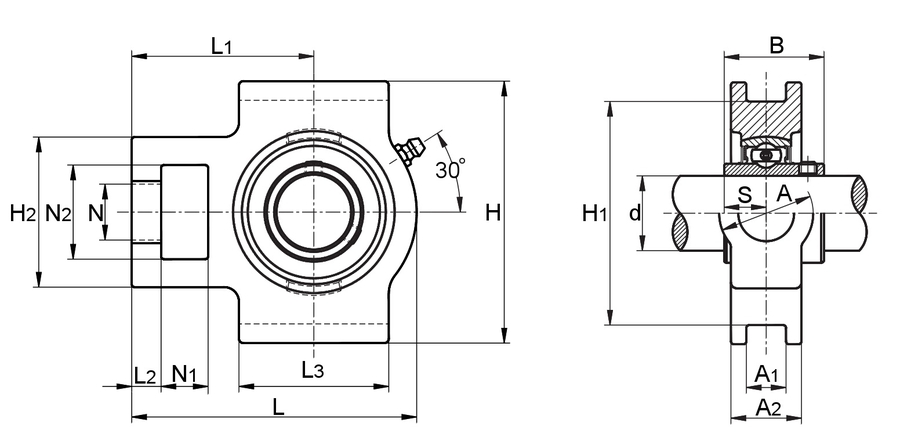

Schematic for UCT 212 | |
| A | 64mm |
| A1 | 22mm |
| A2 | 42mm |
| A4 | 91mm |
| B | 65.1mm |
| d | 60mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| KG | 4.61 |
| L | 194mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 102mm |
| N | 35mm |
| N1 | 32mm |
| N2 | 64mm |
| S | 25.4mm |
