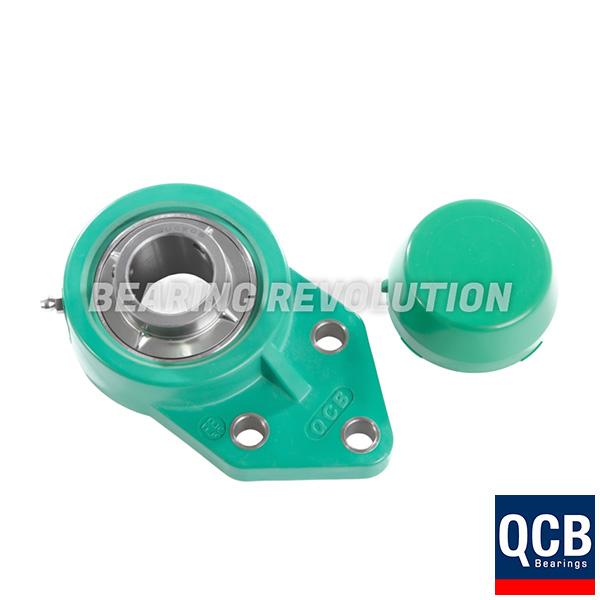

FBL 205 S/S N 6 GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 25MM BORE - SELECT RANGE

Name: FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Select Range
Brand: Select
Price: 79.78 GBP
Availability: InStock

BR Stock No. S-FBL 205 S/S N 6 GRN | Brand: Select | Mfr. Part No. FBL 205 S/S N 6 GRN

Metric UCFB type Green Thermoplastic Flange Bracket Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£66.48 (£79.78 inc VAT)
5 - 9£63.18 (£75.82 inc VAT)
10 +£59.85 (£71.82 inc VAT)
Bulk Order PricesENQUIRE

FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Select Range Schematic

Specifications for FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Select Range
Reference	FBL 205 S/S N 6 GRN
Brand	Select
Inside Diameter	25mm
Bolt	M10
Max Torque	25Nm
Weight (KG)	0.29

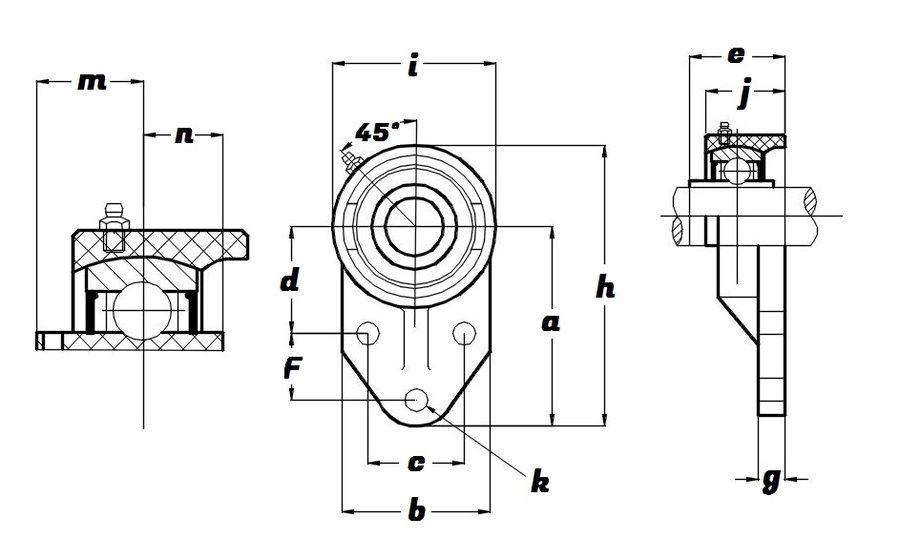

Schematic for FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Select Range
a	85.7mm
b	63.5mm
c	41.3mm
d	46mm
e	41.2mm
f	28.6mm
g	11.4mm
h	120.6mm
i	70mm
j	34mm
k	10.7mm
KG	0.29
m	19.7mm
n	14.3mm
