FIG 650 20 00 AA LM, Internally Geared Slewing Ring - Select Range

FIG 650 20 00 AA LM, Internally Geared Slewing Ring - Select Range 2

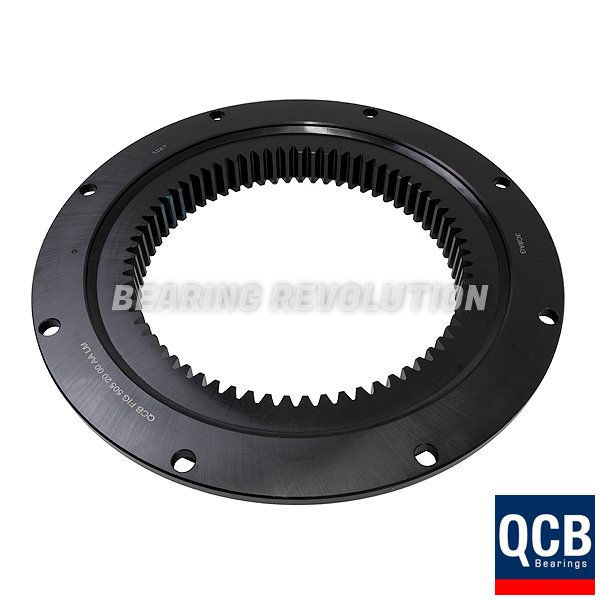

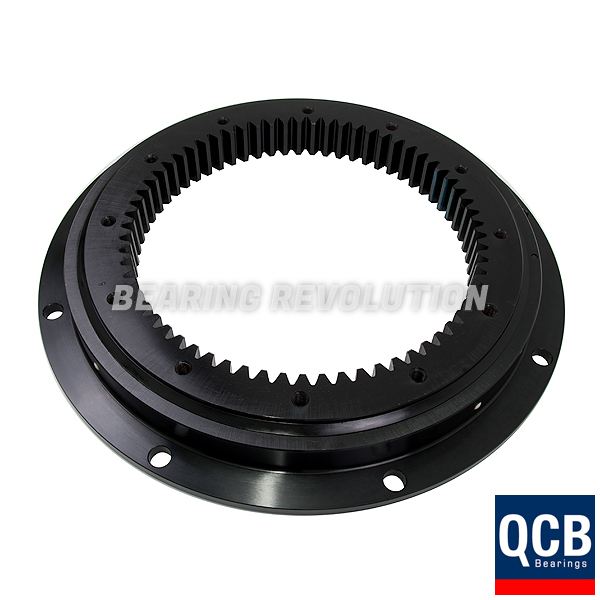

Please note photos are for illustration purposes only

FIG 650 20 00 AA LM, INTERNALLY GEARED SLEWING RING - SELECT RANGE

Name: FIG 650 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Brand: Select
Price: 1,253.88 GBP
Availability: InStock

BR Stock No. S-FIG 650 20 00 AA LM | Brand: Select | Mfr. Part No. FIG 650 20 00 AA LM

FIG 20 Metric - Flanged Light Series of Internally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.

Also known as I 650 20 00 C, VLI 20 0544 N, 22.0541.01.ZZ.00, 232.20.0500.013, 21/650 2, FIG6502000AALM, I.650.20.00.C

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£1,044.90 (£1,253.88 inc VAT)
Bulk Order PricesENQUIRE

FIG 650 20 00 AA LM, Internally Geared Slewing Ring - Select Range Schematic

Specifications for FIG 650 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Reference	FIG 650 20 00 AA LM
Brand	Select

Schematic for FIG 650 20 00 AA LM, Internally Geared Slewing Ring - Select Range
B	583mm
C	542.5mm
Da	648mm
Di	445.2mm
La	620mm
Li	505mm
m	6
Na	10
Ni	16
P	456mm
U	545.5mm
z	76
