Please note photos are for illustration purposes only
Technical Downloads
Data SheetHow To Measure A Bearing FUN 418 20 00 CC LM, UNGEARED SLEWING RING - SELECT RANGE
FUN 20 Metric - Flanged Light Series of Ungeared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as FUN4182000CCLM
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£729.00 (£874.80 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FUN 418 20 00 CC LM, Ungeared Slewing Ring - Select Range | |
| Reference | FUN 418 20 00 CC LM |
| Brand | Select |
| Weight (KG) | 19 |

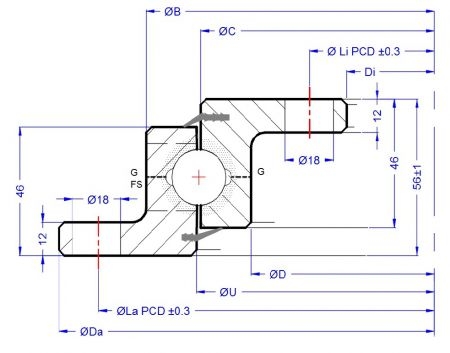

Schematic for FUN 418 20 00 CC LM, Ungeared Slewing Ring - Select Range | |
| B | 353mm |
| C | 312.5mm |
| D | 275mm |
| Da | 418mm |
| Di | 204mm |
| La | 390mm |
| Li | 232mm |
| Na | 8 |
| Ni | 12 |
| U | 315.5mm |
