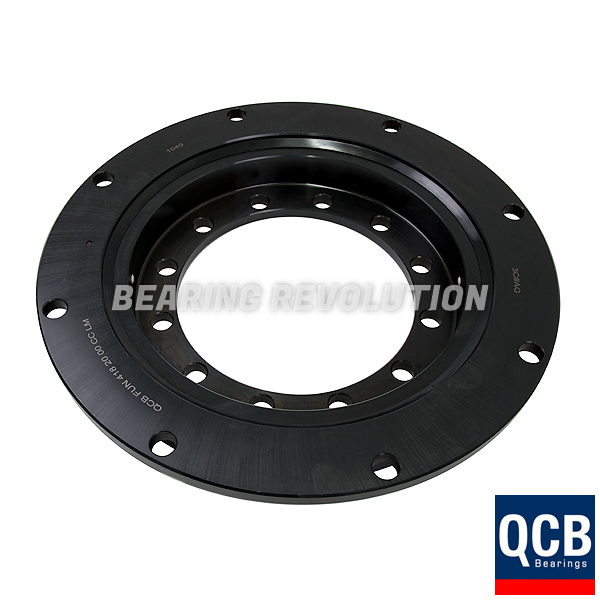

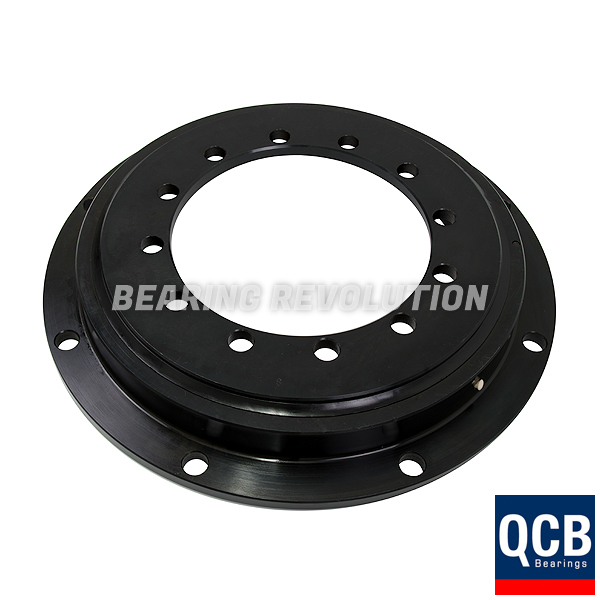

FUN 750 20 00 CC LM, UNGEARED SLEWING RING - SELECT RANGE
FUN 20 Metric - Flanged Light Series of Ungeared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as SD 750 20 00 C, VLU 20 0644 N, 23.0641.01.ZZ.00, 230.20.0600.013, 21/750.0, FUN7502000CCLM, SD.750.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£1,252.26 (£1,502.71 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FUN 750 20 00 CC LM, Ungeared Slewing Ring - Select Range | |
| Reference | FUN 750 20 00 CC LM |
| Brand | Select |

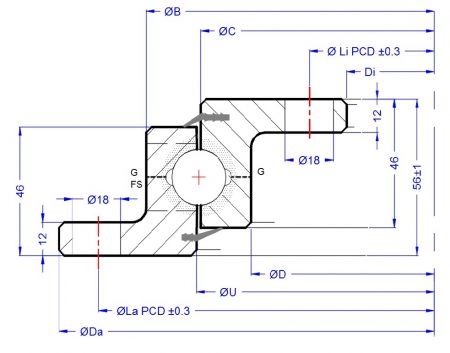

Schematic for FUN 750 20 00 CC LM, Ungeared Slewing Ring - Select Range | |
| B | 683mm |
| C | 642.5mm |
| D | 605mm |
| Da | 748mm |
| Di | 534mm |
| La | 720mm |
| Li | 562mm |
| Na | 12 |
| Ni | 16 |
| U | 645.5mm |
