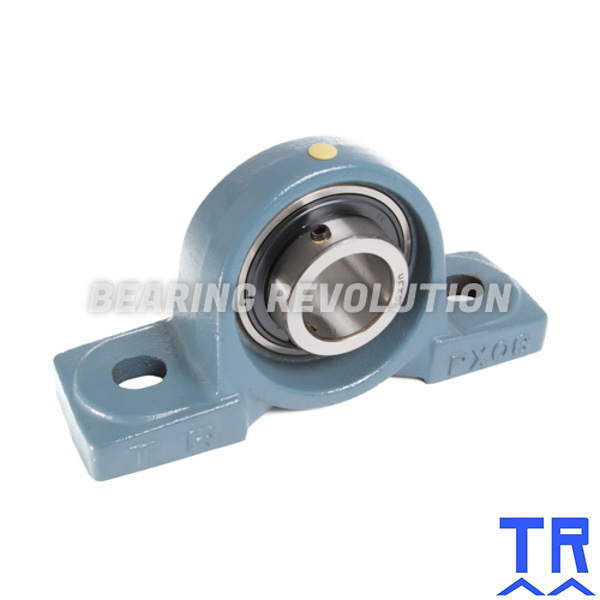

MP 1.3/4 ( UCPX 09 28 ) - PILLOW BLOCK HOUSING UNIT WITH A 1.3/4 INCH BORE - TR BRAND
Heavy Duty Cast Iron Pillow Block Housing Unit complete with full width bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£85.82 (£102.98 inc VAT)
- 5 - 9£81.53 (£97.84 inc VAT)
- 10 +£77.25 (£92.70 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MP 1.3/4 ( UCPX 09 28 ) - Pillow Block Housing Unit with a 1.3/4 inch bore - TR Brand | |
| Reference | MP 1.3/4 |
| Brand | TR |
| Inside Diameter | 1.3/4" |
| Bolt | M16 |
| Weight (KG) | 3.36 |

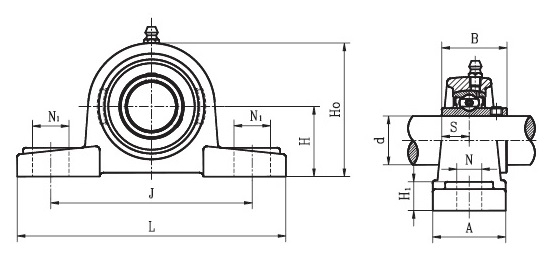

Schematic for MP 1.3/4 ( UCPX 09 28 ) - Pillow Block Housing Unit with a 1.3/4 inch bore - TR Brand | |
| A | 67mm |
| B | 51.6mm |
| H | 58.7mm |
| H0 | 116mm |
| H1 | 25mm |
| J | 156mm |
| KG | 3.36 |
| L | 222mm |
| N | 20mm |
| N1 | 23mm |
| S | 19mm |
