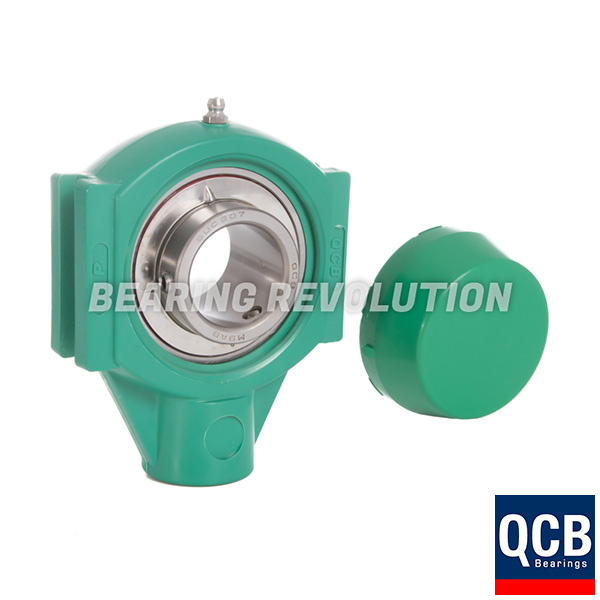

TPL 208 24 S/S N6 GRN, GREEN THERMOPLASTIC TAKE UP HOUSING UNIT WITH A 1.1/2 INCH BORE - SELECT RANGE

Name: TPL 208 24 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1.1/2 inch bore - Select Range
Brand: Select
Price: 201.24 GBP
Availability: InStock

BR Stock No. S-TPL 208 24 S/S N6 GRN | Brand: Select | Mfr. Part No. TPL 208 24 S/S N6 GRN

Imperial Green Thermoplastic Take Up Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£167.70 (£201.24 inc VAT)
5 - 9£159.32 (£191.18 inc VAT)
10 +£150.92 (£181.10 inc VAT)
Bulk Order PricesENQUIRE

TPL 208 24 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1.1/2 inch bore - Select Range Schematic

Specifications for TPL 208 24 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1.1/2 inch bore - Select Range
Reference	TPL 208 24 S/S N6 GRN
Brand	Select
Inside Diameter	1.1/2"
Weight (KG)	1.02

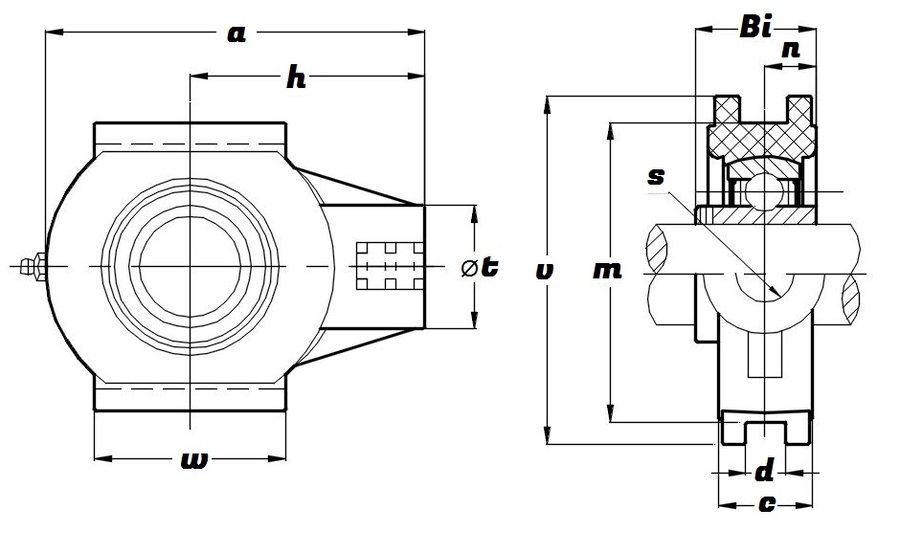

Schematic for TPL 208 24 S/S N6 GRN, Green Thermoplastic Take Up Housing Unit with a 1.1/2 inch bore - Select Range
a	140mm
Bi	49.2mm
c	34.5mm
D	16mm
h	85mm
KG	1.02
m	102mm
n	19mm
s	M16
t	40mm
v	114mm
w	80mm
